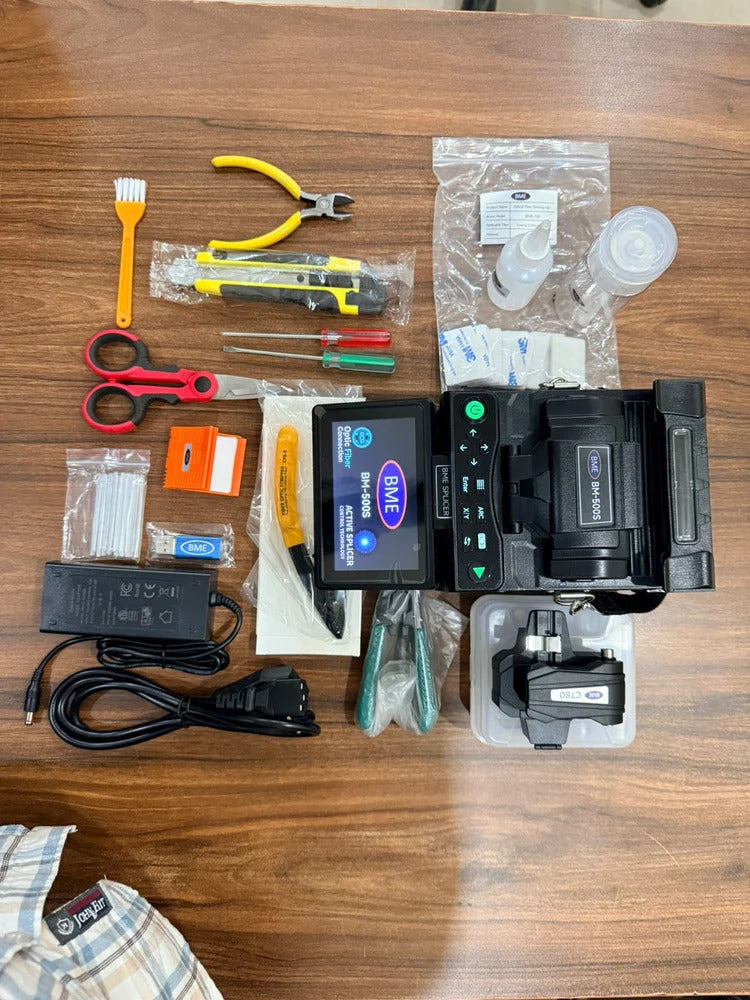

BM-500S Fusion Splicing Machine – Core Alignment Specifications
Alignment & Splicing
Fiber Alignment Method: Core-to-Core digital alignment (active alignment) — aligns fiber cores precisely in two axes for low-loss splicing.

Splicing Time: ~5–6 seconds typical.

Heating Time: ~15–18 seconds (depends on sleeve size; 40mm/60mm).

Typical Splice Loss:

SM (G.652): ~0.01 dB

MM (G.651): ~0.01 dB

DS/NZDS: ~0.02 dB

Return Loss: >60 dB (very high, low reflection).

Splicing Programs: ~40 programmable / stored parameters.

Fiber Compatibility
Applicable Fiber Types:

Single-mode (SMF/ITU-T G.652/G.657)

Multimode (MMF/ITU-T G.651)

Dispersion shifted (DS / ITU-T G.653)

Non-zero dispersion shifted (NZDS / ITU-T G.655)

Cladding Diameter: 80–150 µm

Coating Diameter: ~160–900 µm (varies by specific listing)

Fiber Cleave Length:

~10–16 mm (fiber with coating < 250 µm)

~16 mm (coating up to ~1000 µm)

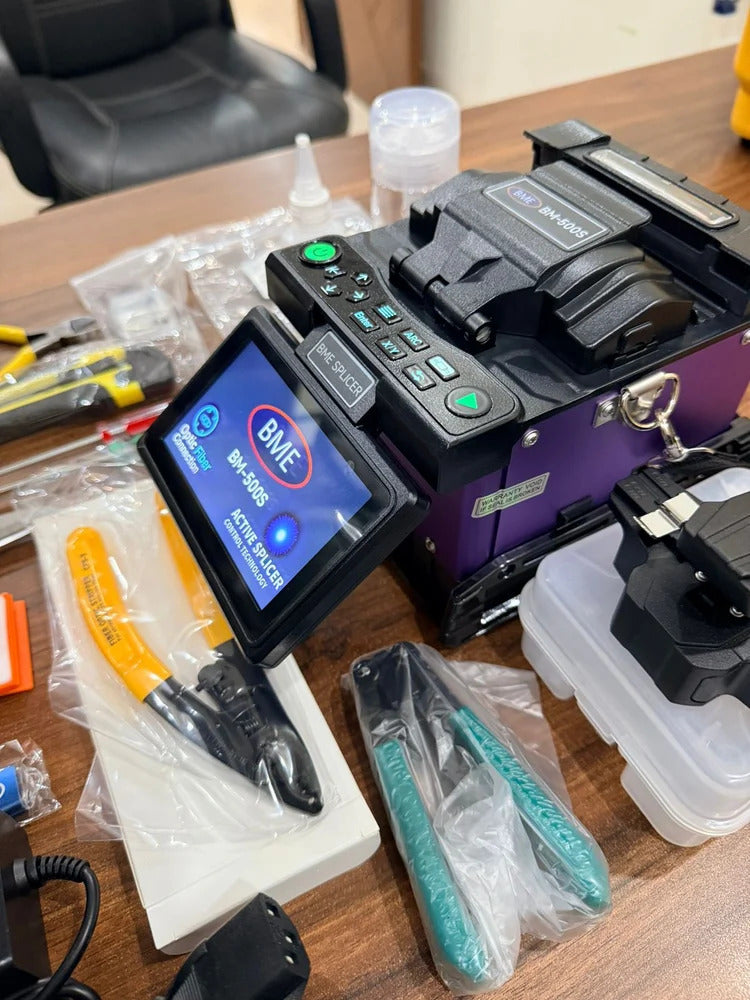

Optics & Display
Fiber View Magnification: ~250× (X or Y view), ~125× (X & Y view)

Viewing System: Two CMOS cameras with LCD display (~4.3” colour).

Power & Battery
Battery: Detachable Li-ion battery (~5200–5800 mAh typical), ~250–300 splice + heat cycles per charge.

Power Supply: AC adapter (AC100-240 V → DC 11–13.5 V).

Data & Interface
Internal Storage: ~4000–8000 splice records. bmesys.com

Data Interface: USB 2.0 for results export and firmware updates. bmesys.com

Operating Conditions
Temperature: Around −10 C to +50 C operating.

Humidity: Up to 95 % non-condensing.

Altitude: Up to ~5000 m. bmesys.com

Tension Test: ~1.8–2.2 N. bmesys.com
