| Heating Time | Typical 20 sec |
| Tention Test | 1.96~2.25N |
| Storage Condition | 0~95% relative humidity/ - 40~80 |
| Splicing Mode | Max 100 modes |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| Lighting | 3 White LEDs |
| Availability | In Stock |

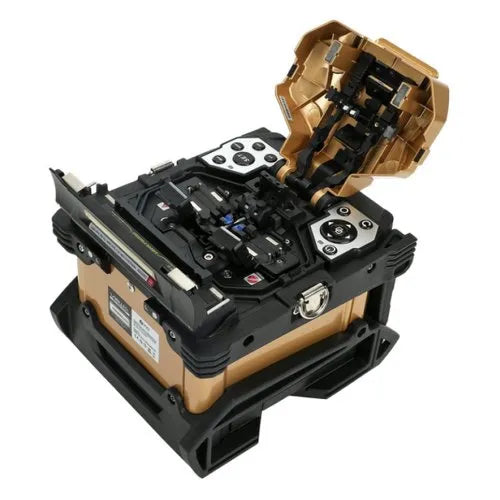

View 6L, a core-alignment fusion splicer with the world's highest fiber image magnification rate, is the exclusive fusion splicer presented only to main telecommunications operators. View 6L's 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world's highest magnification of 520x. View 6L offers maximum work efficiency through the fast heating time of 13s. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 6L offers the most reliable work experiences with the customized solutions for our valuable customers.

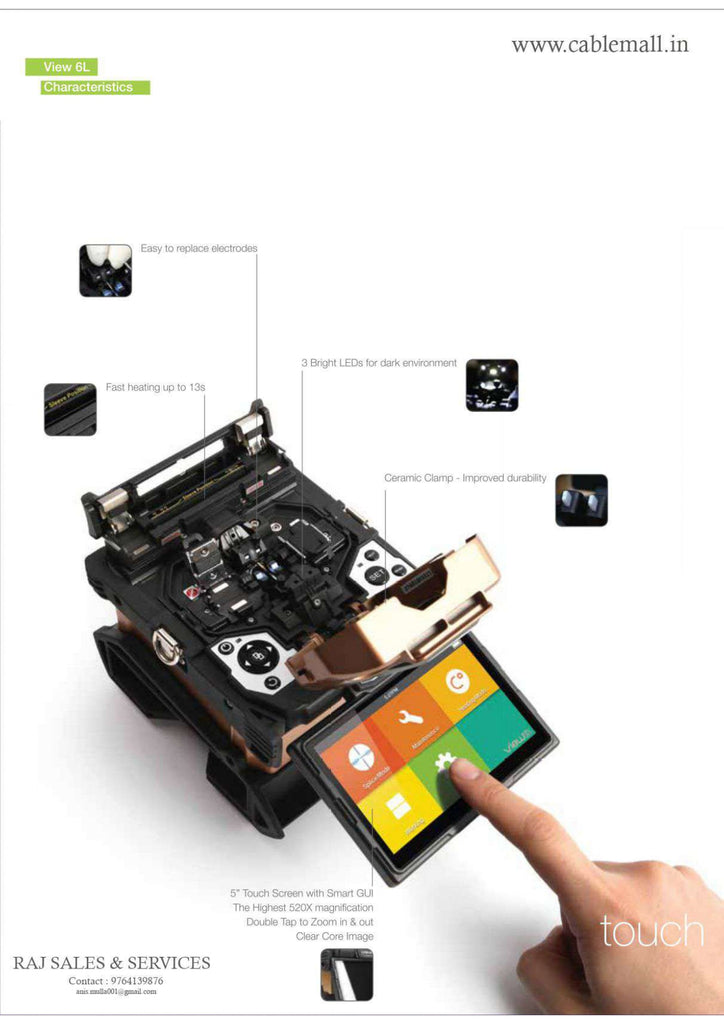

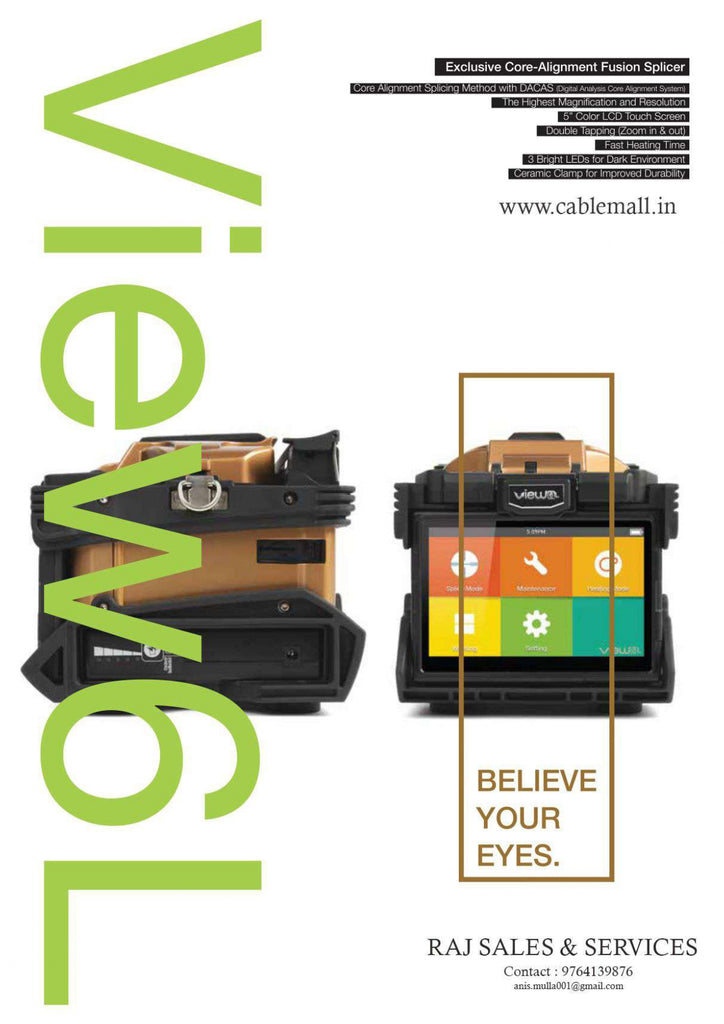

Key Features:
Key Features:
- Exclusive Core-Alignment Fusion Splicer
- Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System)
- The Highest Magnification and Resolution
- 5" Color LCD Touch Screen
- Double Tapping(Zoom in & out)
- Fast Heating Time
- 3 Bright LEDs for Dark Environment
- Ceramic Clamp for Improved Durability
