| Brand | Optilink |

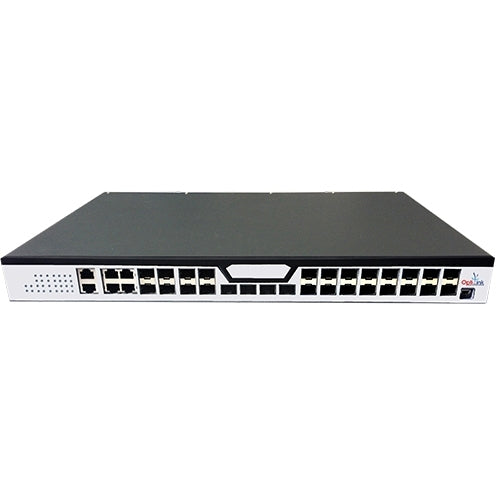

| Model Number | OP-GPON OLT 9016A |
| MAC table capacity | 64K |
| PON Port | 16 |
| Uplink interface | 4 gigabit SFP slots, 4 gigabit TX/SFP combo ports 4 10G SFP+ slots |
| Backplane bandwidth | 205G |
| Transmission Rate | 2.5 Gbps |
| Interface | Class B+ and Class C+ GPON module |
| Availability | In Stock |
Justifying our reputation in this market, we are readily immersed in the arena of offering to our patrons a broad consignment ofGpon Data Olt With 16 Pon Ports.
OPTILINK OP-GPON OLT 9016A complies with ITU-T G.984/G.988 and meets requirements about GPON OLT in Network Access Technical Requirements. It supports the Asymmetric uplink 1.25Gbps/downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users. Its coupling ratio ups to 1128, and its support of different hybrid ONU networks minimize the carrier''s investment. It is based on the edge-cutting technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.
| OP-GPON OLT 9016A | |
| System Capacity | Maximum coupling ratio1128 Backplane bandwidth205G MAC table capacity 64K |
| PON | 16 |
| Uplink interface | 4 gigabit SFP slots, 4 gigabit TX/SFP combo ports 4 10G SFP+ slots |
| Attributes of the PON Interface |
The transmission rate with downlink 2.5Gbps/uplink 1.25Gbps Class B+ and Class C+ GPON module Security ONU authentication mechanism |
| Standards | ITU-T G.984/G.988 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad physical link static/dynamic aggregation (LACP) Ethernet - II |
| QoS | Backpressure flow control (half duplex) IEEE 802.3x flow control (full duplex) IEEE 802.1p, CoS WRR, SP and FIFO queue schedule Limiting the uplink/downlink rate based on each ONU DBA and SLA |
| VLAN | Port-based VLAN QinQ and flexible QinQ |
| Multicast | L2 multicast IGMP Snooping MLD Snooping |
| Reliability | Unidirectional Link Detection (UDLD) Hot swap of the GPON optical module Optical path protection of GPON (type B/C, hand-in-hand) Abnormal luminescence ONU detection such as long luminescence |
| Network Security | Limiting the maximum number of users on each port Port isolation |
