Sharp Vision CATV POWER Supply 10 Ampere

Availability: 0 left in stock
Type: Sharp Vision, CATV , 6 Ampere , 10 Ampere, 15 Ampere

Rs. 1.00

10 people are viewing this right now.

Estimated Delivery Date : 30 - 02 July, 2026.

Product Specifications

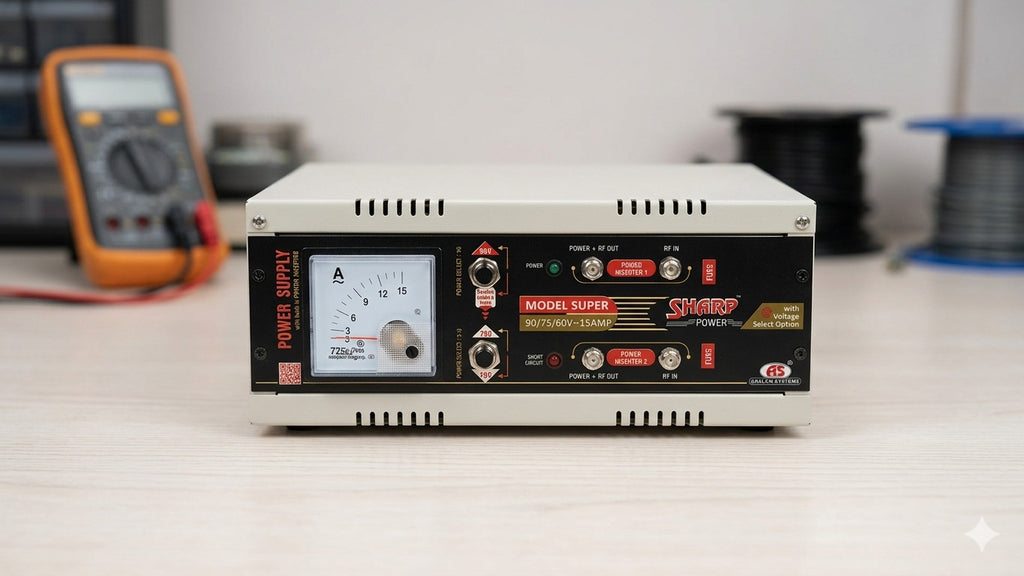

Based on the image and technical details for this product line:

Voltage Output Options: The unit allows for manual selection between 60V, 75V, and 90V.
Current Capacity: This specific "Model Super" variant is rated for 15 Amperes.
Frequency Range: It operates within a frequency response of 5 ~ 860 MHz, making it suitable for standard CATV signal distribution.
Safety & Monitoring:
- Analog Ammeter: Located on the left side to monitor real-time current draw.
- Fuse Protection: Includes external fuse slots for both "Power Inserter 1" and "Power Inserter 2" to protect against overloads.
- Short Circuit Indicator: Features a dedicated LED to alert users of a short circuit in the line.

Dual Power Insertion: The front panel has two RF ports (RF IN and POWER + RF OUT) labeled "Power Inserter 1" and "Power Inserter 2," allowing the supply to inject power directly into the coaxial cable line.
Voltage Selection Switches: There are two toggle switches (one for 90V and one for 75V) to adjust the output based on the network's distance and requirement.
Built-in Power Inserter: This model integrates the power supply and inserter into one chassis, reducing the need for external components in the cable headend or field.
