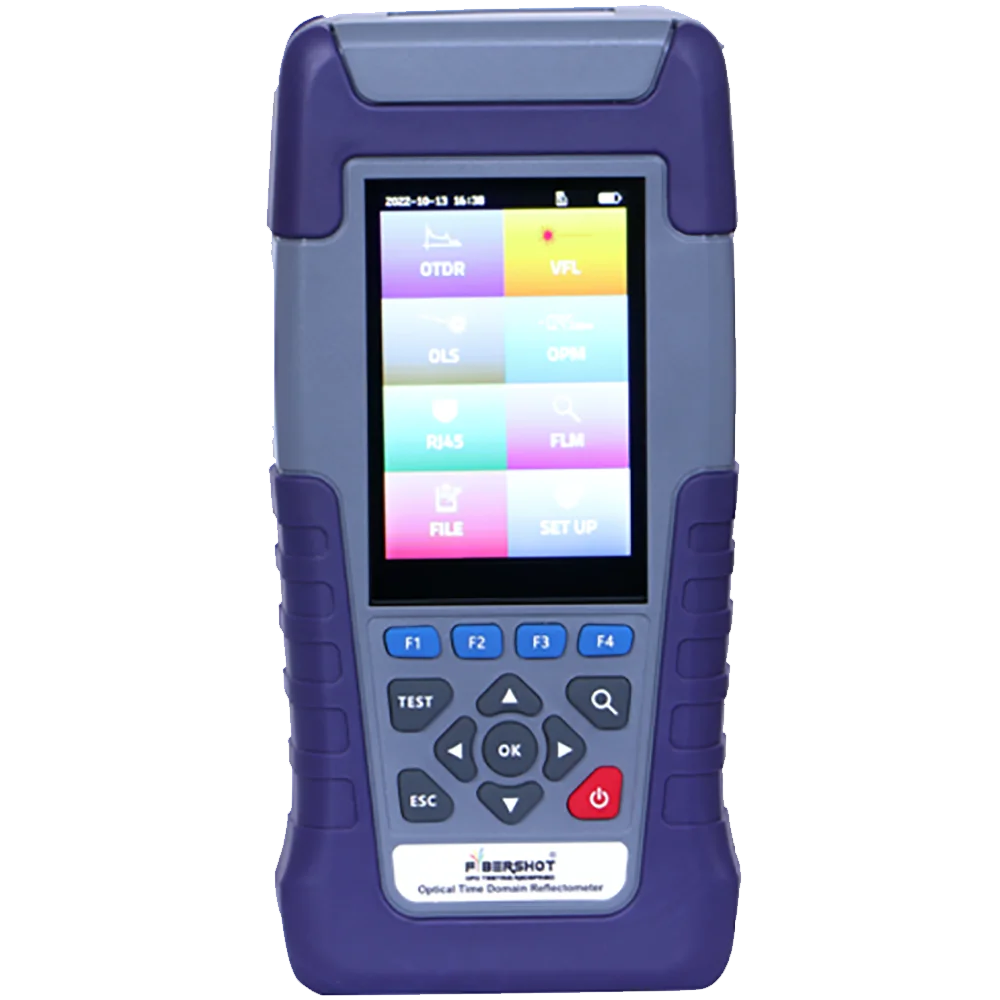

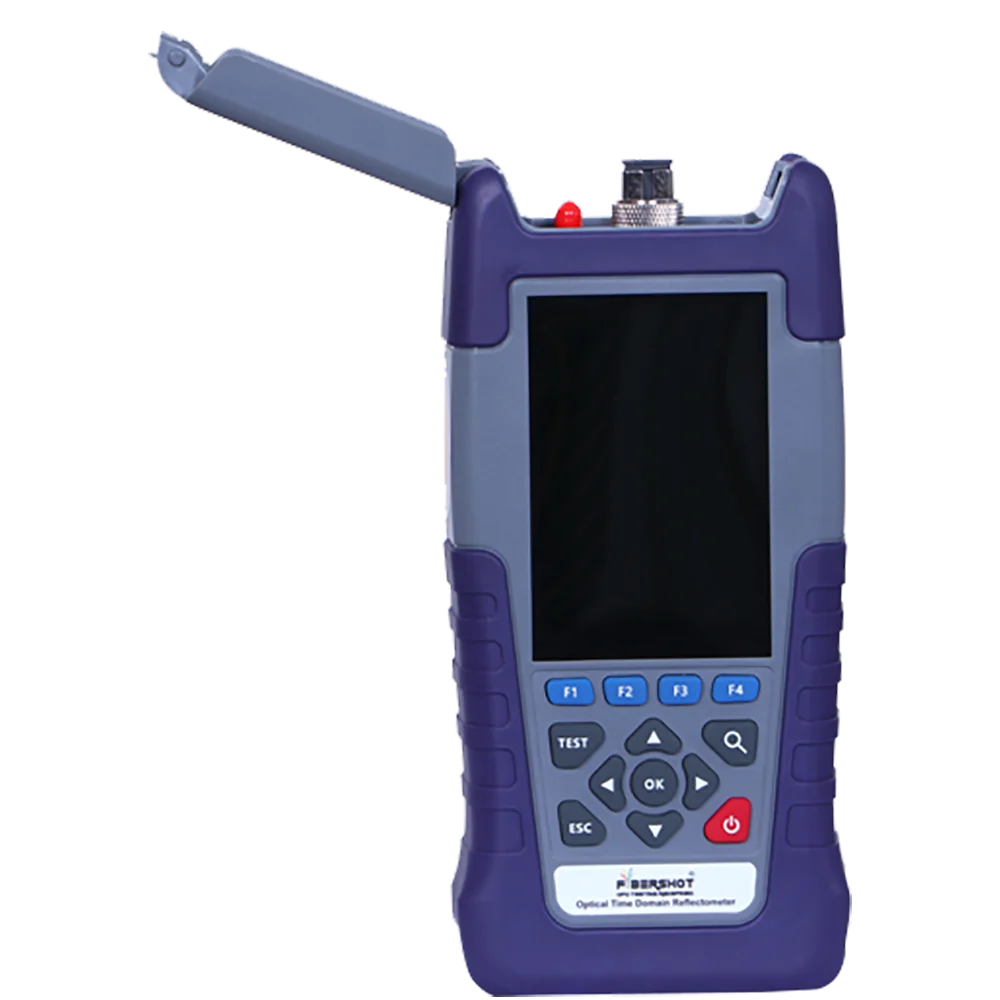

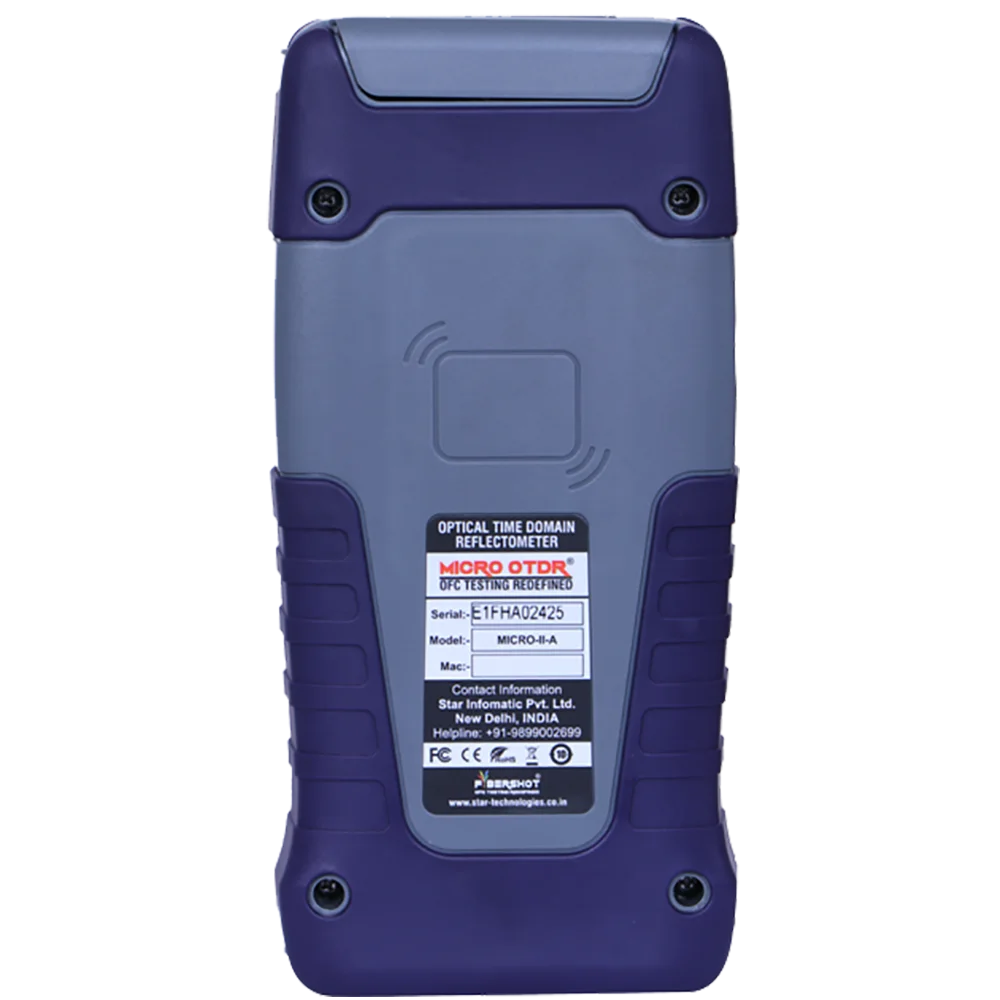

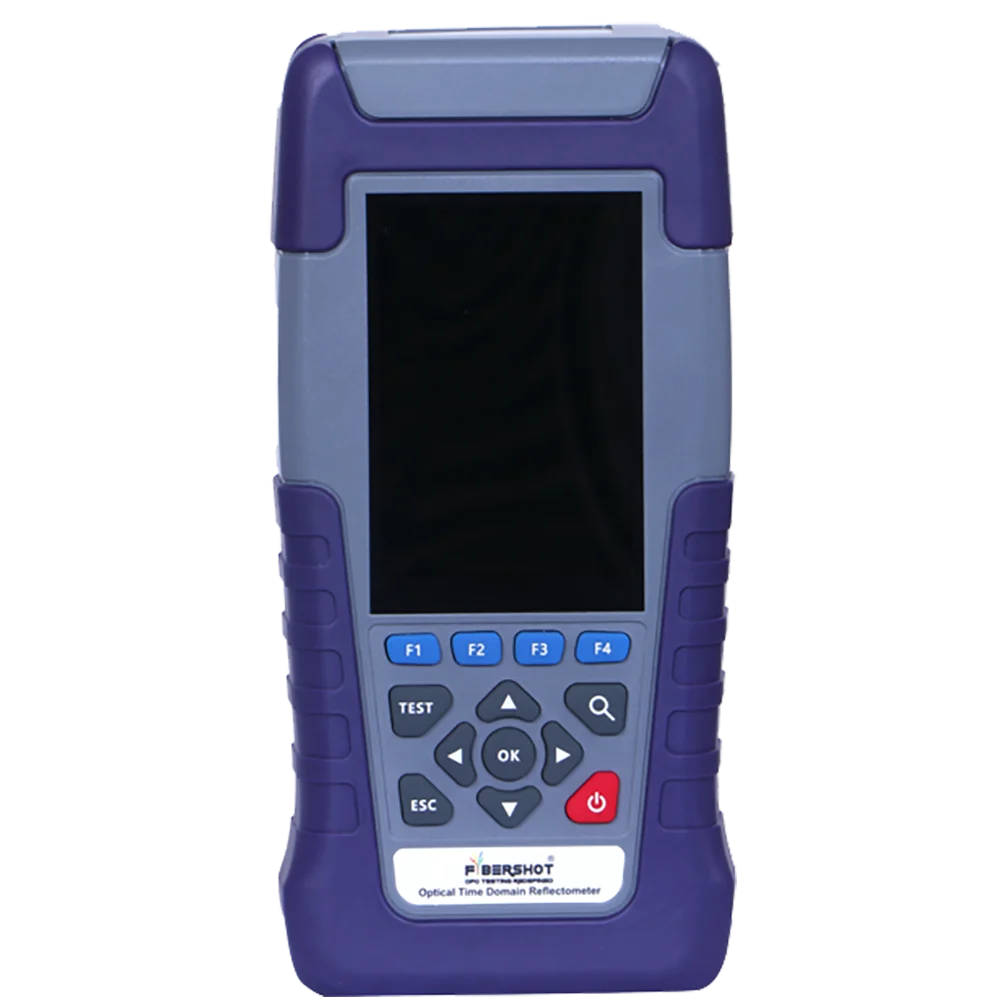

Presenting The New All in One Multifunction Fiber Testing Device

The Fibershot Micro-OTDR-II OTDR is used for maintenance & installation of cable-TV/broadband/FTTH/network/device maintenance/engineering acceptance, CCTV network,and transmission cables and so on.

The FibershotMicro-OTDR-II OTDRcan determine and locate the faults and breaks of an optical fiber, network cable and other cables & wires within 5 seconds automatically and very easily.

The Fibershot micro OTDRs greatly improves the efficiency of installation & maintenance while reducing the cost of operation & maintenance, especially suitable for the last 100 meters of optical fiber& network cables on FTTH.

Description

OTDR: Locate the faults and breaks of an optical fiber, measure the length, the transmission loss, and the splice loss.

OPM: Measure the average optical power.

VFL: Used for fiber tracking, finding fiberfaults, losses & breaks.

Network Cable Test: To determine faults in RJ-45 networking cable.

Optical Laser Source: Optical laser source is used for testing of singlemode fiber optic network and offers the user excellent stability and portability for accurate fiber optic test &inspection capabilities.

Fiber Link Map: FLM is a technology that automates the process of configuring the OTDR to capture and analyse all the information on a fibre in a simple user friendly formatwhile displaying information about the length and the number of connectors and splices on the span.

Features

  • OTDR – full function PON OTDR that also allows Live Fiber Testing
  • LTDR – To Test Copper CAT-5/6, Cable TV Copper Cables, Electrical Wiring.
  • OPM – To Check Optical Signal Level
  • PON POWER METER – Check OLT/ONU, Useful for Internet Service Providers.
  • VFL – Check Fiber Faults Visually.
  • NETWORK TEST – No Need of Laptop to check Internet Speed & LAN Health.
  • LINK TEST – Can check Ping to the Router/Gateway.
  • LINE TEST – Check Break/Shorting Point in The Copper Cat-5/6 Cables
  • LINE SEARCH – Locate cables under the Wall or Find Cable in the Control Room.

Applications

  • Excellent service tool for FTTx
  • Broadband
  • Cable TV Service
