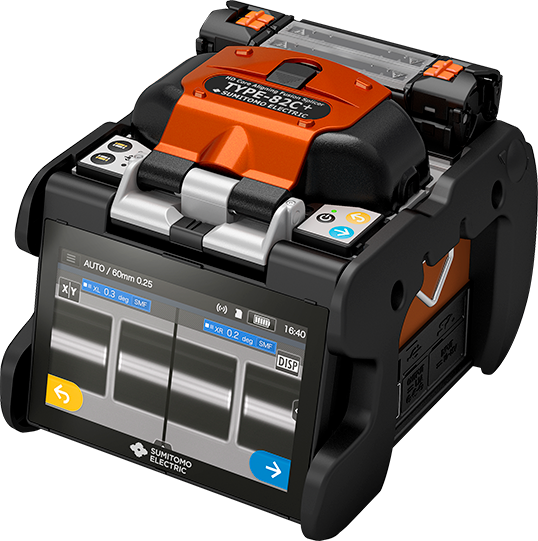

High Definition Core Aligning Fusion Splicer-82C+’s 5 inch LCD monitor with touch screen operation enables to confirm fiber images easily. The Sumitomo splicer can be operated by touching the icons on the screen.
- Universal Clamp Fiber Holder.
- Electrode life: 6000 arc discharges.
- Dual Independent Heater.
- Long life battery for 320 splice & heat cycle.
- High Definition Core Monitoring System.
- Touch optimised user interface and high resolution display.
- Minimum Splicing Loss.
- Internal Data Storage: 200/10000 Splice data
- High Speed dual independent ovens for productivity
- Touch optimized user interface and high resolution display
- Proven Field toughness
- Long life battery for 320 splice & heat cycles
| Function Type | Fully Automatic |
| Brand | Sumitomo |
| Electrode Life | 6,000 arc discharges |
| Model No. | 82C Plus |
| Material | Silica glass |
| Profile Types | Single/SMF(G.652), MMF (G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), CSF(G.654), EDF |
| Cleave Length | 5-16mm with coating clamp |
| Applicable Protection Sleeve | 60mm, 40mm & Sumitomo Nano sleeves |
| AC Input | AC 100-240V, 50/60Hz (ADC-16) |
| DC Input | DC 10-15V |
| Battery Pack | Li-ion 10.8V, 6,400mAh (BU-16) |
| Altitude | 6,000m |
| Wind Velocity | up to 15m/sec |
| Software Updates | Internet |
| Data Management | Can be stored, edited and analyzed by dedicated PC software |
| Availability | In Stock |
High Definition Core Aligning Fusion Splicer-82C+'s 5 inch LCD monitor with touch screen operation enables to confirm fiber images easily. The Sumitomo splicer can be operated by touching the icons on the screen.
Features
- Universal Clamp Fiber Holder.
- Electrode life: 6000 arc discharges.
- Dual Independent Heater.
- Long life battery for 320 splice & heat cycle.
- High Definition Core Monitoring System.
- Touch optimised user interface and high resolution display.
- Minimum Splicing Loss.
- Internal Data Storage: 200/10000 Splice data.
