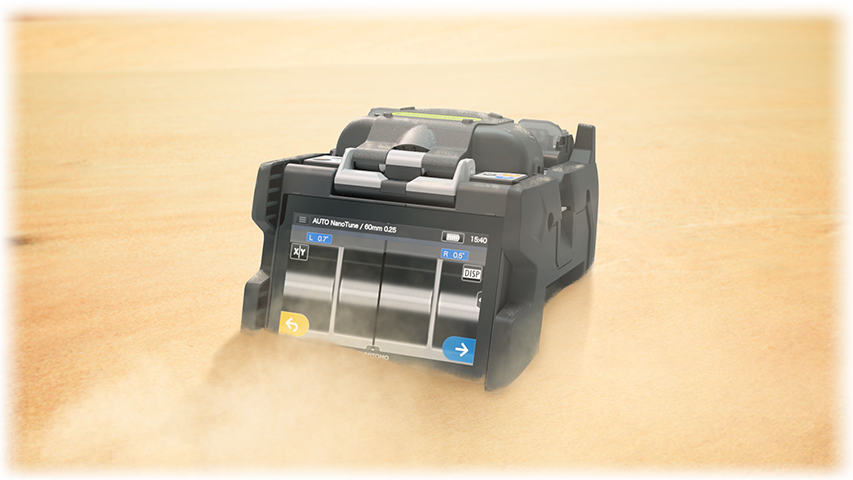

Unsurpassed toughness when dropped

Drop from 76cm on 5 faces
(excluding the top face),
4 edges and corners on the bottom

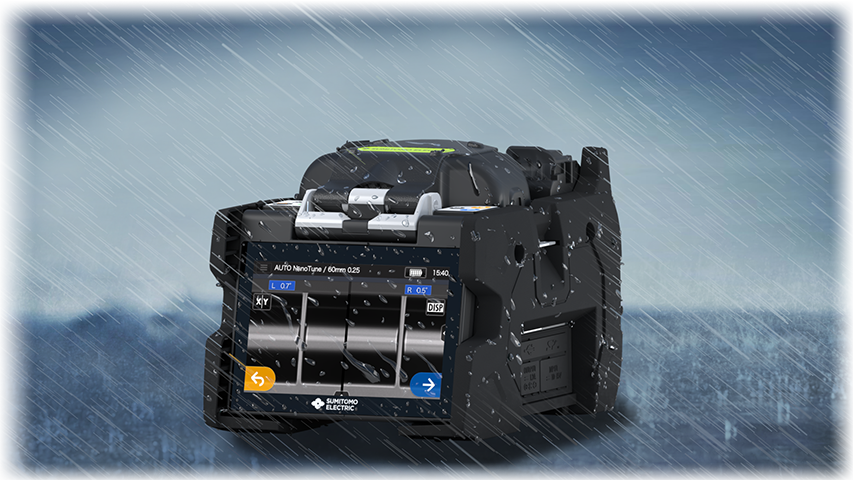

IP52, Water & Dust resistance

Dust; Equivalent to IP5x
(Operates normally after 8 hours in a test chamber
with circulating dust particles smaller than 75um)
Water; Equivalent to IPx2
(Operates normally after being exposed to
water dripping at 3mm/min. for at least 2.5 min
on each of 4 surfaces tilted at 15°)

Feature 02

Quality and high speed protection

Single automatic oven
Heating time (typical) : 15 Sec for 60mm sleeve

Feature 01

Excellent splice performance

High Level Core Alignment
Insertion loss (typical) : 0.02dB for SMF
Splice speed (typical) : 6 Sec for SMF
