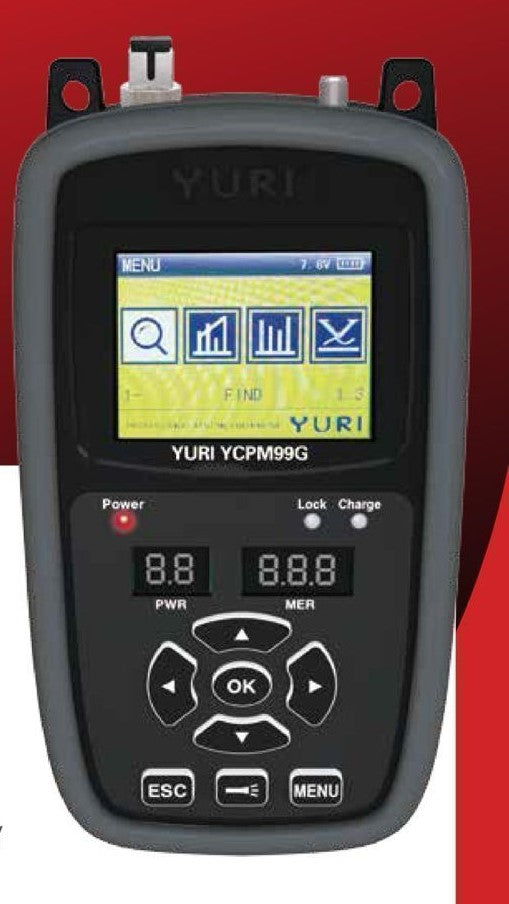

Technical Specifications: YURI YCPM99G
All-in-One Functionality: Cable TV Digital dB meter with MER, BER, 8 Channels TILT, and Optical Power Meter (OPM).
Design: Compact, rugged, and handheld design built for field durability.
RF Analysis: Comprehensive Cable TV RF Analysis (Frequency & Level).
Advanced Monitoring: Multi-channel monitoring and TILT measurement for up to 8 channels simultaneously.
User Interface: User-friendly graphical interface featuring a high-quality color touchscreen.
Signal Analysis: Built-in Spectrum Analyzer and Spectrum View for deep signal troubleshooting and data storage.
Battery Power: High-capacity 7.4V / 2600 mAh long-life rechargeable battery.
Interface Ports: * RF: F-Type connector.
Optical: SC/UPC or FC/APC compatibility.
Data: USB port for firmware updates and data management.
Comprehensive Measurement Display: Simultaneously displays Power, MER, BER, and Channel Lock status.
Optical Range: Optical Power Meter (OPM) with a wide dynamic range from -50 to +26 dBm.
Power Testing: Includes AC/DC Power Adapter and integrated Power Pass Tester.
Smart Calibration: Automated Self-Calibration (adjustments for all parameters, single-channel power, MER, and factory reset option).
