Full link integration design Highly integrated

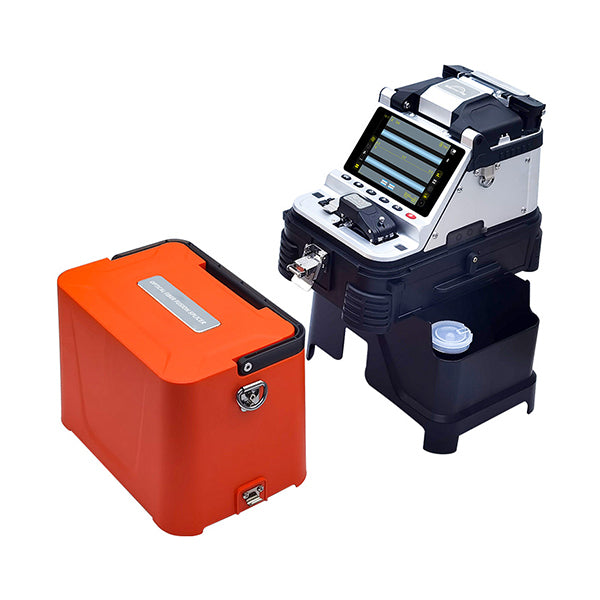

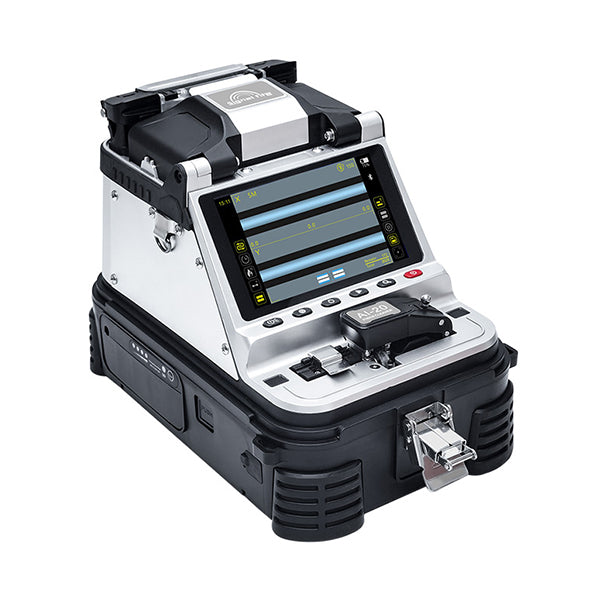

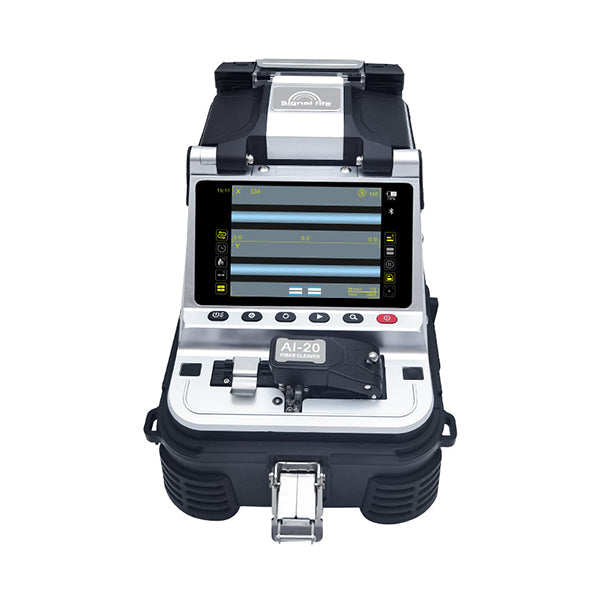

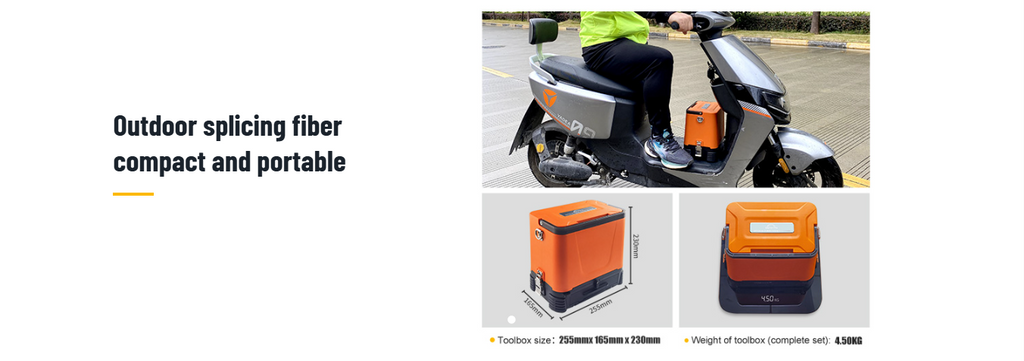

The AI-20, the fourth generation fiber fusion splicer developed by Signal fire, is the latest generation of fiber fusion splicer designed for full link integration. It combines Signal fire's latest research and development of a delayed return electric one-step cleaver with fiber fusion splicing, while integrating OPM and VFL functions. Combined with a nine in one signalfire fiber stripper, a combinable workbench and worktable, it truly becomes a compact, lightweight, and easy to operate fiber fusion splicer, which will greatly improve your work efficiency.
Basic Parameter
| Fiber alignment | Core/cladding |
|---|---|
| Motor number | 6 motors / Accurate fiber alignment: 0.1μm |
| Splicing time | 6s |
| Heating mode | 15s, can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber. |
| Cladding diameter | 80-150μm |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Splicing mode | Automatic focusing core alignment, conventional/high precision welding |
| Splicing way | Automatic, Semi-automatic |
| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber, drop cable |
| Fiber cleaver | High precision delay return electric one-step fiber cleaver |
| VFL | The machine comes with: power: 15mW, 2Hz flashing and steady on mode |
| OPM | Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm / Measurement range: -50+30dbm Absolute error: <0.3dB (-50dbm ~+3dBm range) |
| Battery capacity | 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 240 cores |
| Magnification | 320x (X or Y axis single display) 200x (x and Y axis dual display) |
| Fiber diameter | Coating diameter: 80-150μm / Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-16mm / coating layer 250-1000μm: 16mm |
| Heat shrink tube | 60mm, 50mm, 40mm, 25mm |
| Tensile testing | 2N standard |
| Display | 5-inch TFT color screen |
| External lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction |
| Mobile charging | The USB port can charge mobile devices such as mobile phones |
| Boot time | 1 second, boot can enter the working mode |
| Data storage | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Return loss | Better than 60dB |
| Protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| Work environment | Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s |
SERVICE COMMITMENT
Once you buy our Fusion Splicer machine, we offer original packaging new machine, the products meet industry-related quality standards and commitment to enjoy the following services provided by our company:
One year warranty, but these circumstances are not within the scope of this provision.
- A、Except for the cleaver, Miller clamp, stripping pliers, fiber holders and other tools whose life depends on the frequency of use and the use of the environment.
- B、Electrodes are consumables, it is in termination after the electrodes splicing 4,000 times.
- C、Battery and power adapter warranty for six months.
- D、Due to natural disasters and other outside force majeure caused by failure or damage.
- E、Human factors cause the machine to strong shocks, drops and other factors result in damage.
- F、Without our company authorization, unauthorized disassembly, repair situation; at the same time our company reserves the right to further responsibility.
- G、The customer bear the out and home shipping cost.
