Opti-Link Fiber-to-Fiber Optical Transmitter with a 10.5 dBm output power rating. It is primarily designed for digital signal transmission and cable television (CATV/HFC) network distribution to carry video, data, and audio signals over fiber optic infrastructures.
Technical Specifications Breakdown

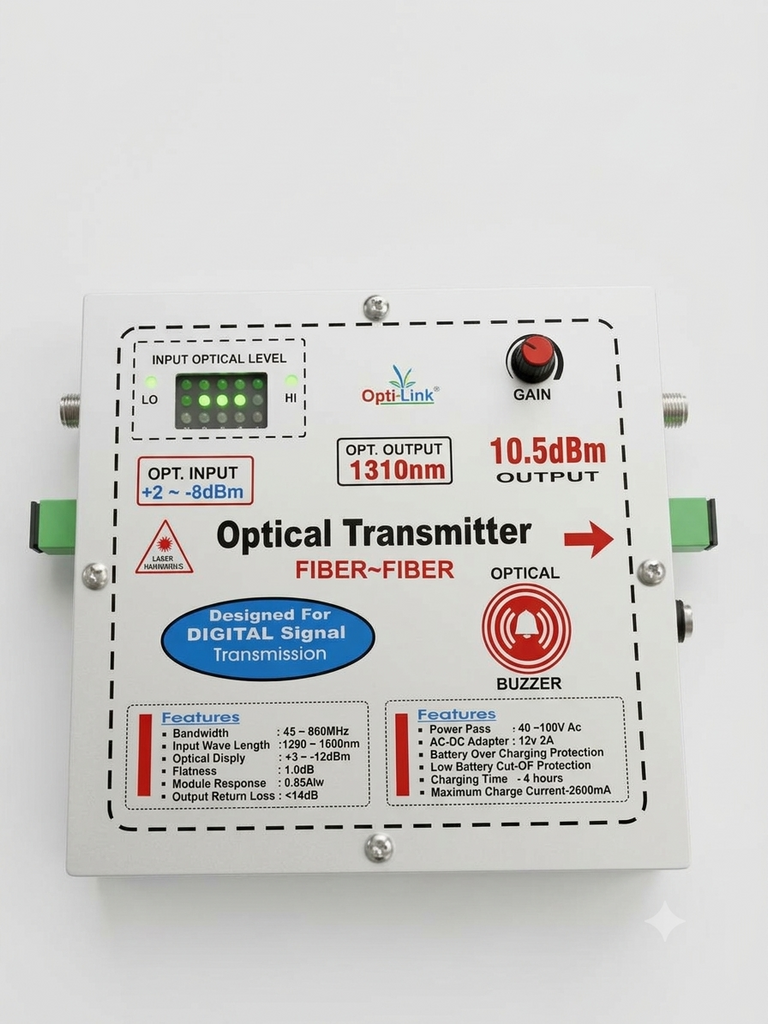

Based on the text and interface elements on the device's faceplate, here are its exact performance metrics and parameters:
| Parameter / Feature | Value | Details / Interpretation |
|---|---|---|
| Output Target Wavelength | 1310 nm | Operates in the standard single-mode optical fiber transmission window. |
| Optical Output Power | 10.5 dBm | The signal intensity transmitted into the outgoing fiber optic line. |
| Input Optical Level Range | +2 to -8 dBm | The safe operational power bracket for incoming light signals entering the transmitter. |
| RF Bandwidth Coverage | 45 – 860 MHz | Accommodates standard analog and digital communication spectrum allocations. |
| Optical Display Meter | +3 to -12 dBm | Reflected by the visual LED array ("Input Optical Level") to monitor real-time signal conditions. |
| Power Specifications |
40–100V AC (Power Pass) 12V, 2A (DC Adapter) |
Supports direct external utility adapter feeds or inline coaxial network power lines. |
Functional Features & Interface Points
- Gain Adjustment Knob: Located at the top right, this dial allows manual adjustments to the electronic signaling amplification.
- Integrated Buzzer Alarm: An optical notification buzzer triggers immediately if there is a severe breakdown or dropped signal strength.
- Hardware Protections: Equipped with integrated circuitry designed to handle battery over-charging and low-voltage cuts to safeguard delicate fiber component systems.
