| Color | Black |
| Type | EDFA |
| Usage/Application | Commercial |
| Connectivity Type | Wired |
| Frequency | 50 Hz |
| Material | ABS Plastic |
| Voltage | 240 V |
| Automation Grade | Semi Automatic |
| No of Ports | 16 |
| Availability | In Stock |
Features:

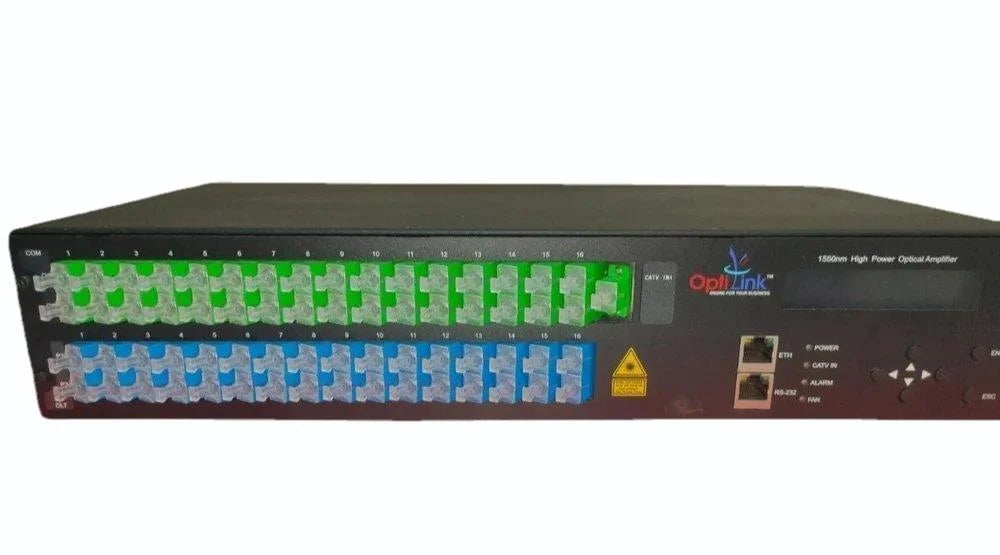

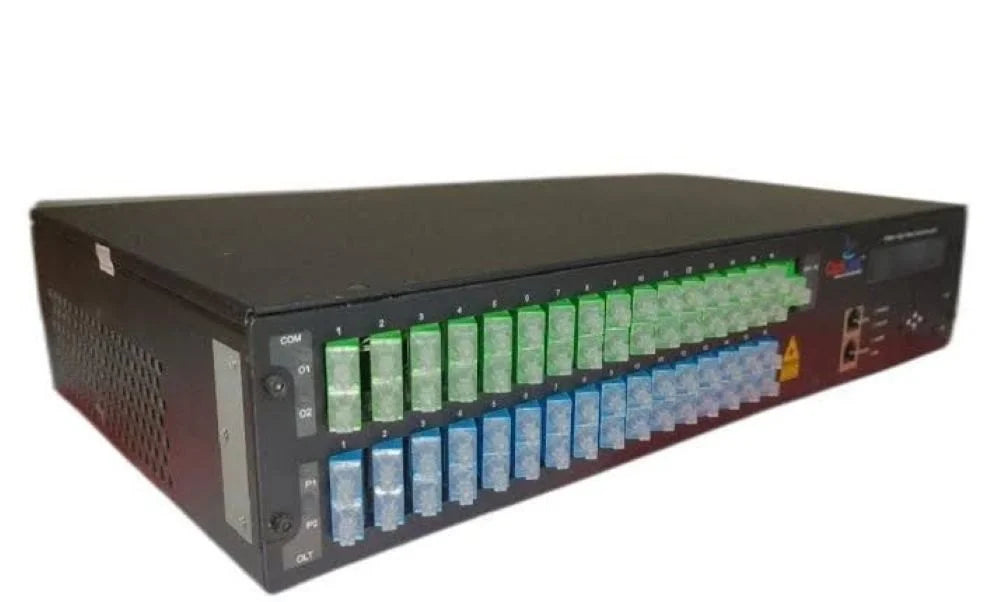

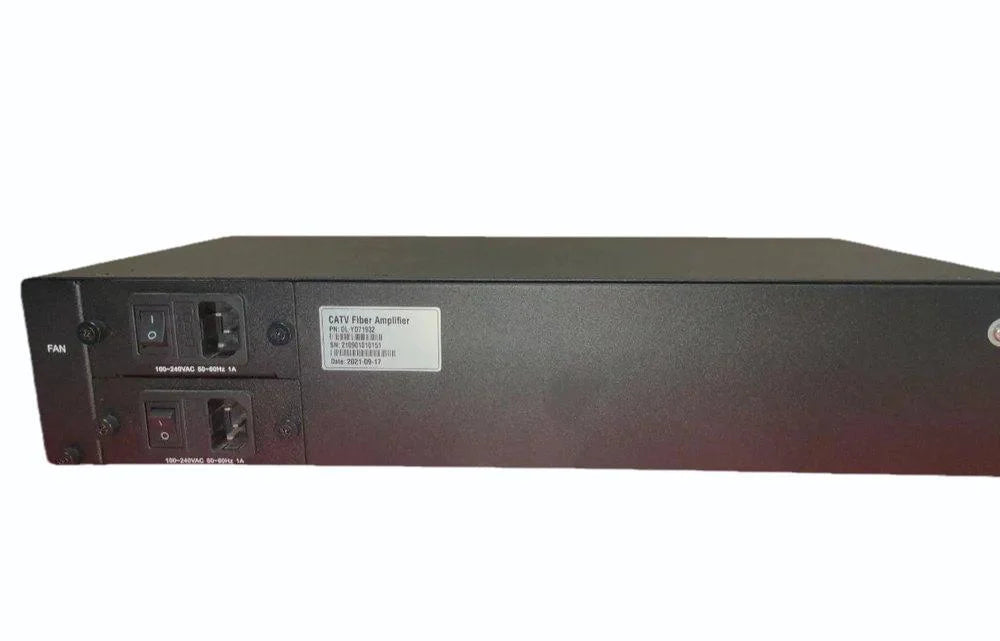

The Optilink 16 Port PON EDFA WDM Dual SMPS is a high-performance optical amplifier designed for FTTH and CATV networks. It features 16 output ports, each delivering 19 dBm of optical power, with a total output of 38 dBm. The device operates within the 1530–1565 nm wavelength range and incorporates a built-in WDM (Wavelength Division Multiplexing) to combine CATV and PON signals efficiently. Equipped with dual SMPS (Switched-Mode Power Supply)for redundancy, it ensures continuous operation. The amplifier also supports SNMP-based network management and boasts a low noise figure of ≤6 dB, making it suitable for large-scale fiber networks.
