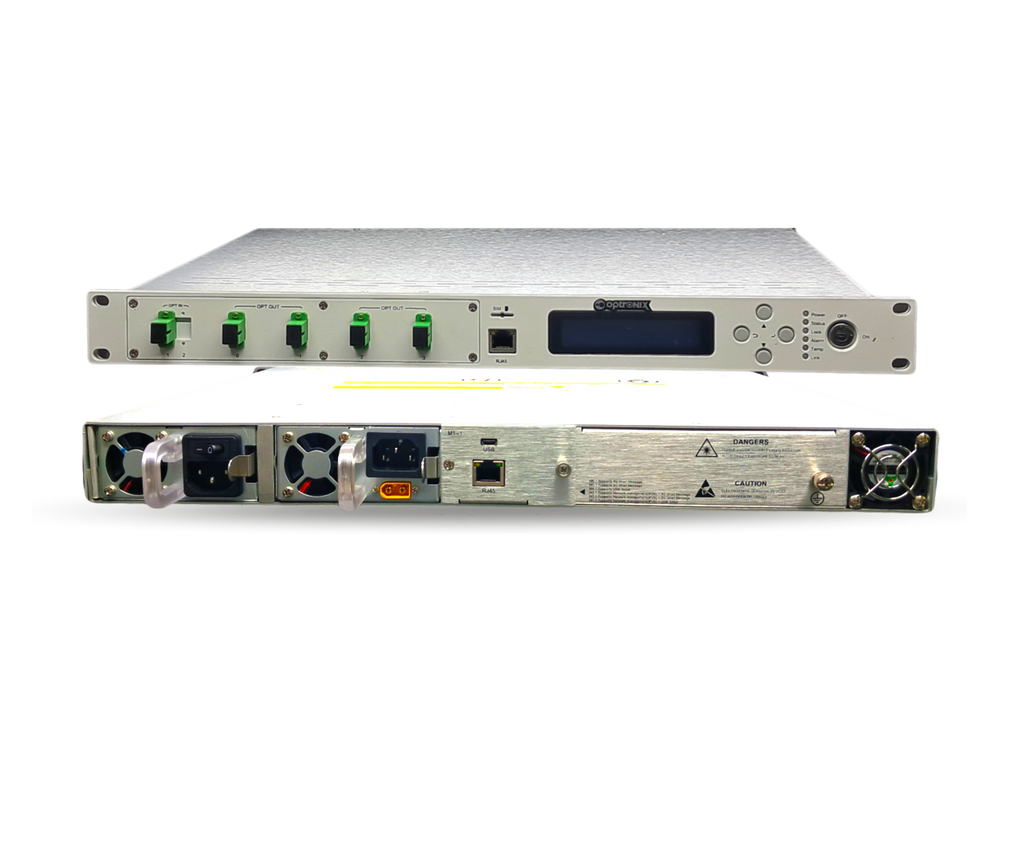

Our CATV EDFA is a high-performance amplifier for 1550nm fiber transmission, delivering powerful, distortion-free output with excellent signal flatness for analog/digital TV, high-speed internet, and voice over long distances. With ultra-low noise, outstanding CSNR, and intelligent network monitoring (SNMP/Web/RS-232), it ensures carrier-grade reliability. Its compact rack-mount design, redundant power supply, and versatile configurations make it ideal for CATV headends, backbone, and broadband networks.
- PD/AC & DC/AC Redundant Power are used for Better Maximum Output Power Stability
- Erbium Ytterbium Co-Doped Double Clad Fibre Technology
- Modern Design for Easy Maintenance & Management
- Complete Redundant & Visual Alarm Function Supporting Both Indicator Light and Buzzer
- One Touch Double Power Supply
- Output Power Range -5 to +8 dBm is Adjustable
- Standard Network Management Interface (SNMP) Support Web Management
Specifications
Technical Parameters
Item
Parameters
Wavelength
1550±15nm
Optical Input Power
-3 ~ +10dBm
Optical Output Power Stability
±0.5dB
Noise Figure
<5.0dB
Return Loss (Input)
>45dB
Return Loss (Output)
>45dB
Pump Leakage Input
< -30dBm
Optical Connector (Input/Output)
FC/APC, SC/APC
Power Source (AC/DC)
115~260V, Plug-in type Power
Working Temperature
-5~+45°C
Size
19×1U×375mm
| Technical Parameters | ||||
|---|---|---|---|---|
| Item | Parameters | |||
| Wavelength | 1550±15nm | |||
| Optical Input Power | -3 ~ +10dBm | |||
| Optical Output Power Stability | ±0.5dB | |||
| Noise Figure | <5.0dB | |||
| Return Loss (Input) | >45dB | |||
| Return Loss (Output) | >45dB | |||
| Pump Leakage Input | < -30dBm | |||
| Optical Connector (Input/Output) | FC/APC, SC/APC | |||
| Power Source (AC/DC) | 115~260V, Plug-in type Power | |||
| Working Temperature | -5~+45°C | |||
| Size | 19×1U×375mm | |||
