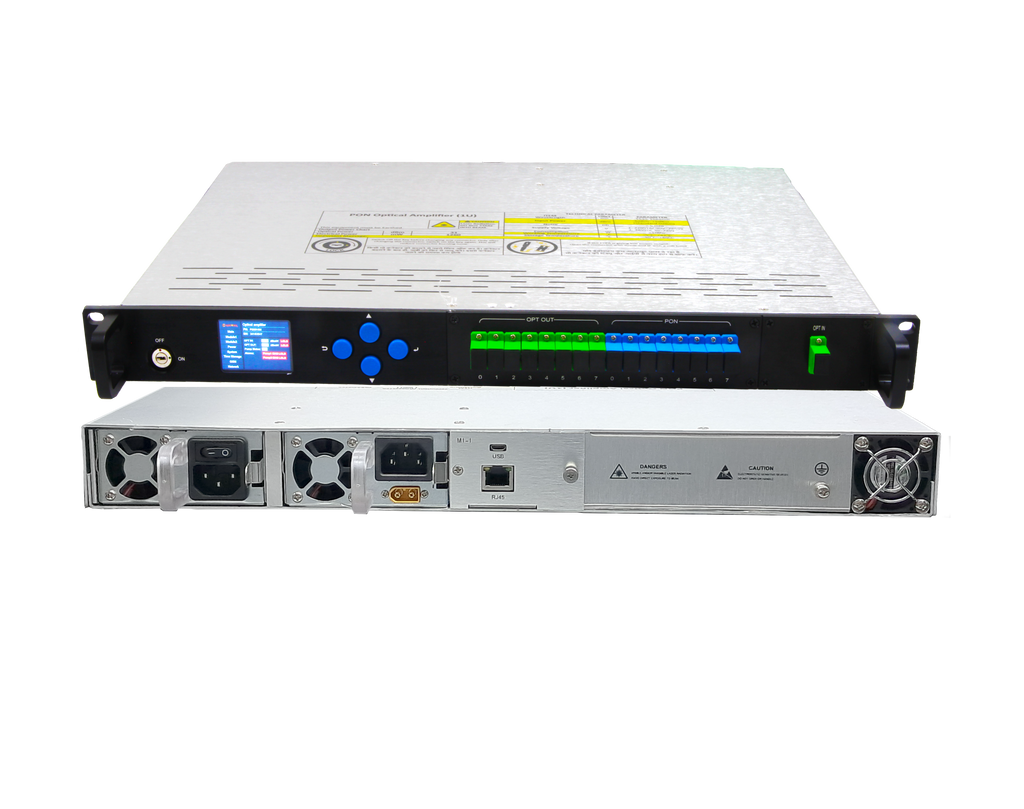

Our WDM EDFA/PON EDFA is a high-performance optical amplifier that combines CATV and OLT signals, delivering powerful CATV output for integrated network applications. With low noise, wide dynamic range, and intelligent network management (SNMP, Web, RS-232), it ensures stable, long-distance transmission in FTTx and HFC networks. Its compact rack-mount design, redundant power options, and plug-and-play installation make it ideal for modern broadband access systems.
Key Highlights
- 8,16,32 uplink optical ports on OLT, 4 & 8 ports of PON and 1550nm CATV EDFA Combine out
- Each output port is optical amplifier that built-in self-controlled CWDM
- 1550nm CATV output port equipped power adjustable 13/14/16dBm
- Dual controlling interface port of the pump laser
- SNMP Port & Plug-in SNMP system enable remote monitoring
- Status indicator lights
- High quality, backplane and flat laser
- LCD displays the working parameters, functions and trouble alarm
- Switch power supply works in the range of AC90V – 265V AC or -48V DC
| Technical Parameters | ||||
|---|---|---|---|---|
| Item | Parameters | |||
| Wavelength | 1310nm / 1490nm / 1550nm | |||
| CATV Wavelength | 1550nm | |||
| CATV Input Power | -3 ~ +10dBm | |||
| CATV Output Power | 13/14/16dBm | |||
| CATV Noise Figure | <5.0dB | |||
| CATV Return Loss | >45dB | |||
| CATV Output Ports | 4 / 8 | |||
| Network Management | SNMP, Web, RS232 | |||
| Optical Connector | FC/APC, SC/APC | |||
| Power Supply | AC90V~265V or -48V DC | |||
| Working Temperature | -5~+45°C | |||
