Description
AS 950 is an Analog Meter which displays signal strength, frequency, channel number & V/A on the LCD screen.
AS 952 displays all the features of AS 950 with additional features of Optical level & Digital level.

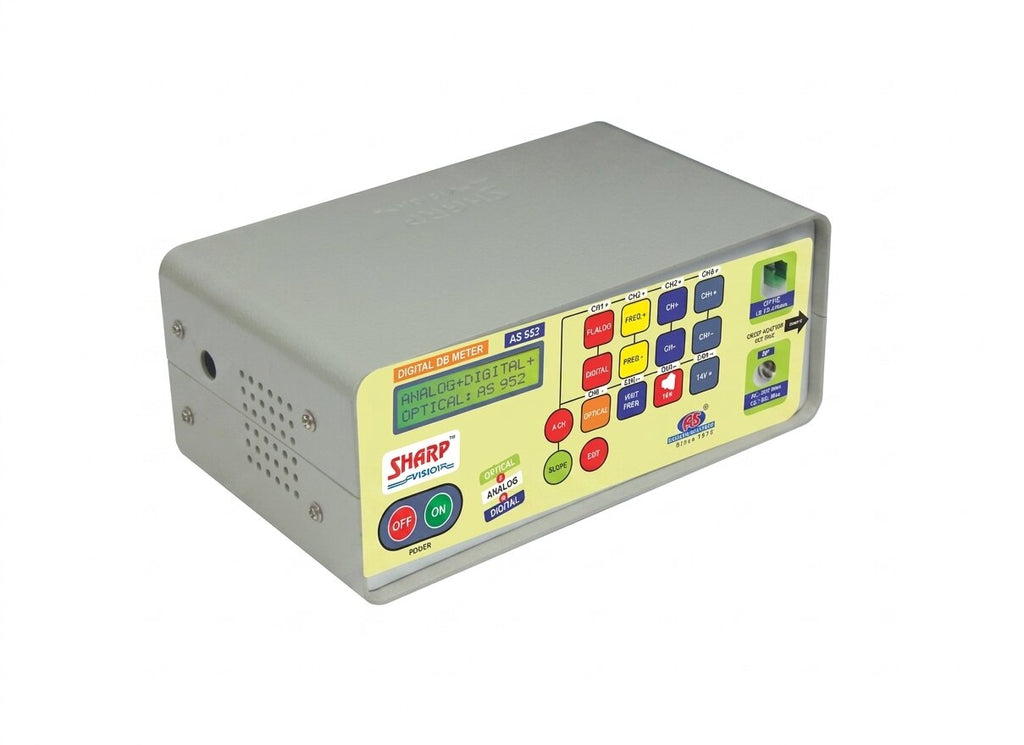

Sharp Vision Field Strength Meter AS 952 is a "4 in 1" DB Meter for complete trouble shooting in the field, be it DIGITAL, OPTICAL or ANALOG signal. AS 952 goes from Analog mode to Optical & Digital by press of front panel switches.
Features
Analog features
• Accuracy: ±1.5 dB
• Freq.: 40 ~ 860 MHz (106 Ch.)
• Battery Protection with auto power off
• Memory of 106 Channels at 10 Locations
• Rechargeable Battery & Charger Provided
• Slope & Level Measurement at any 3 Ch. of your Choice
• V/A Measurement & Sound Output of Selected Channels
• Automatic Freq. Tuning – Essential to get Correct Level
• Favorite Ch. Selection for Quick Study of your Cable System
Digital features
- Digital signal level display for 16 QAM to 256 QAM
Optical features
- Optical level display +4dBm to -15dBm
