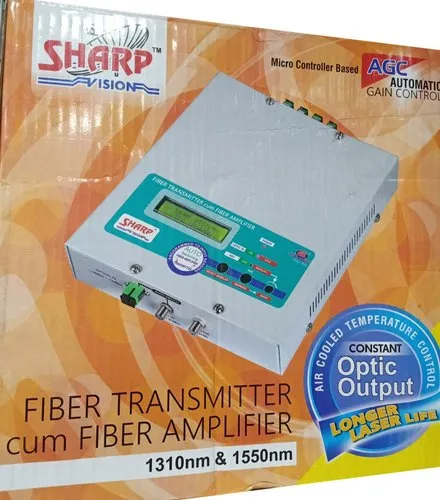

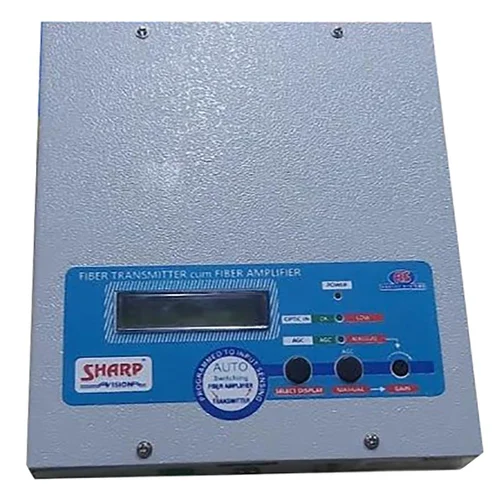

The Sharp Vision FTFA 842 is an advanced Fiber Transmitter cum Fiber Amplifier designed specifically for fiber distribution in DC FTTH networks. It functions as both a transmitter and an amplifier, featuring an automatic switch-over between Fiber and RF inputs.
Key Specifications
- Optical Output: 2 ports providing (10 x 2) dBm.
- Wavelength: Standard output at 1310nm (1550nm available on request).
- Bandwidth: 47 ~ 860 MHz.
- RF Input Range: 75 ~ 85 dBuV.
- Optical Input Range: -8 dBm to +3 dBm.
- Power Consumption: 50 Watts.
- Power Supply: SMPS supporting 110V AC to 265V AC, 50Hz.
