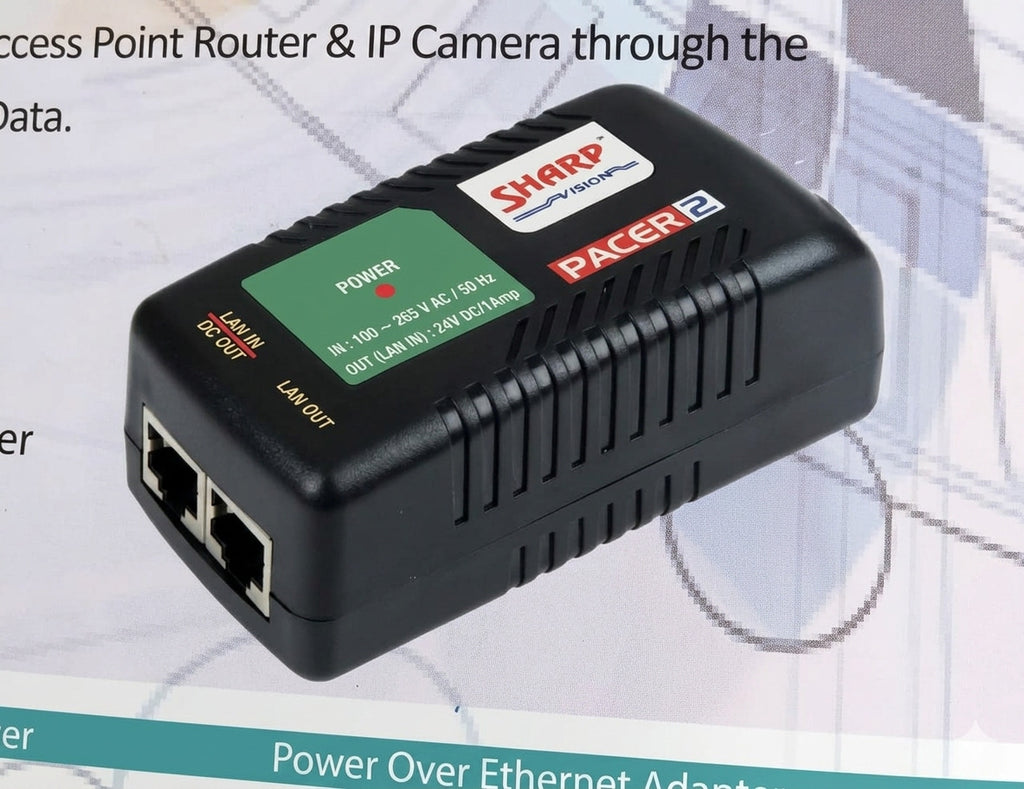

This device is a Sharp Vision PACER 2 Power Injector (PoE Adapter). It is used to deliver both data and electrical power to network devices through a single Ethernet cable.
Key Specifications
- Input Power: 100 – 265 V AC, 50 Hz.
- Output Power: 24V DC / 2 Amp (some listings indicate 1 Amp).
- Transfer Rate: Supports speeds up to 300Mbps.
- Range: Can deliver power and data up to 100 meters. Features & Usage
- Application: Commonly used to power POE-enabled wireless Access Points (APs), IP cameras, IP phones, and other network devices like ONUs or ONTs.
-
Interface: Features two RJ45 ports:
- LAN IN: For data input from a router or switch.
- LAN OUT / DC OUT: Combined power and data output to the target device.
- Installation: A "Plug & Play" device with a built-in adapter, requiring no additional software.
- Indicators: Includes a Power LED to confirm the device is receiving AC power
