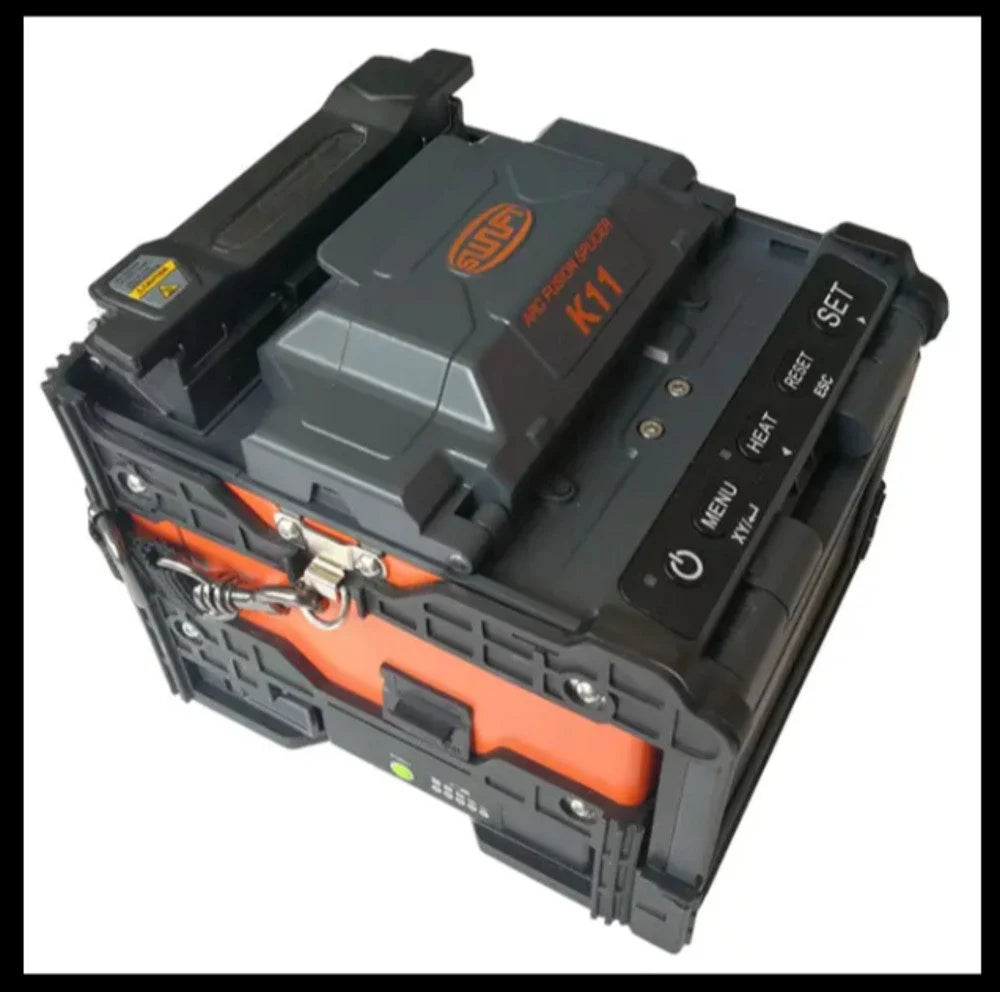

The Swift K11 is an advanced core-to-core alignment splicer ideal for medium and long range optical circuit, LAN, CATV, FTTx. With a compact, light, rugged design and a long life battery, the K11 delivers high precision performance.
- Wide 5.0-inch color LCD monitor with touch screen & bidirectional operation system
- Powerful lithium polymer battery with large capacity
- User friendly GUI
- Optical fiber recognition capability and LED lamp in heater
- Lowest splice loss ever in the industry
b
| Category | Description |
| Fiber alignment |
IPAAS Core-to-Core Alignment (image pattern analysis alignment system)
|
| Applicable type of fibers |
0.25mm, 0.9mm, 2.0mm, 3.0mm, 4.0, indoor cable
|
| Fiber count |
Single fiber
|
| Applicable fiber dimensions |
Cladding diameter: 80~150㎛, Coating diameter: 100㎛~4mm
|
| Fiber setting and cleaved length |
0.28in ~ 0.63in
|
| Splicing modes |
Splice mode: 300, Heat mode: 100
|
| Typical splice loss |
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
|
| Return loss |
> 60dB (typical)
|
| Splicing time |
Typical 6 sec. (quick mode)
|
| Sleeve heating time |
9sec (IS-45 Sleeve, IS-45 mode), 13sec (IS-60 Sleeve, IS-60 mode)
|
| Applicable protection sleeve |
1.5in, 2.4in, 1.3in or 1.1in for SOC
|
| Storage of splice result |
The last 10,000 results to be stored in the internal memory (image 10,000 results)
|
| Tension test |
1.96N ~ 2.25N
|
| Operating condition |
Altitude: 5,000m above sea level, Temperature: -14F ~122 F, Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
|
| Storage condition |
Temperature: -40℉ ~176 F Humidity: 0~95%
|
| Dimension |
5.6(W) x 6.4(L) x 5.5(H)in (without bumper)
|
| Weight |
With battery 5.0lb
|
| Viewing method and display |
Two CMOS cameras and 5.0-inch color touch LCD
|
| Fiber view and magnification |
X/Y: 200X, Max: 400X
|
| Power supply |
DC Lithium polymer battery (DC 14.8V, 4700, 6000mAh-option), 100~240V AC charger
|
| No. of splice cycles with battery |
Typical 250 cycles / More than 350 cycles (K11-6000)
|
| Electrode life |
More than 3,500 times
|
| Terminals |
USB
|
